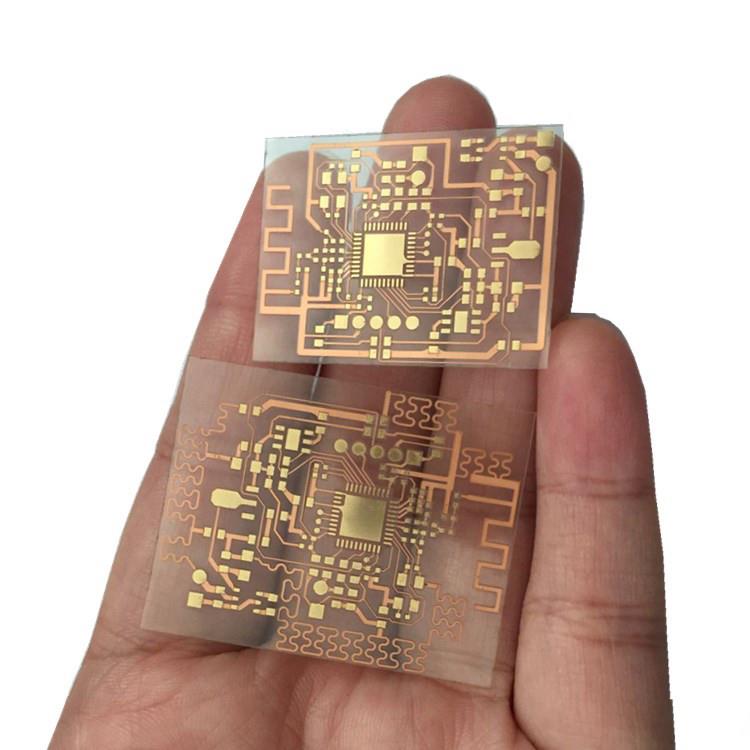

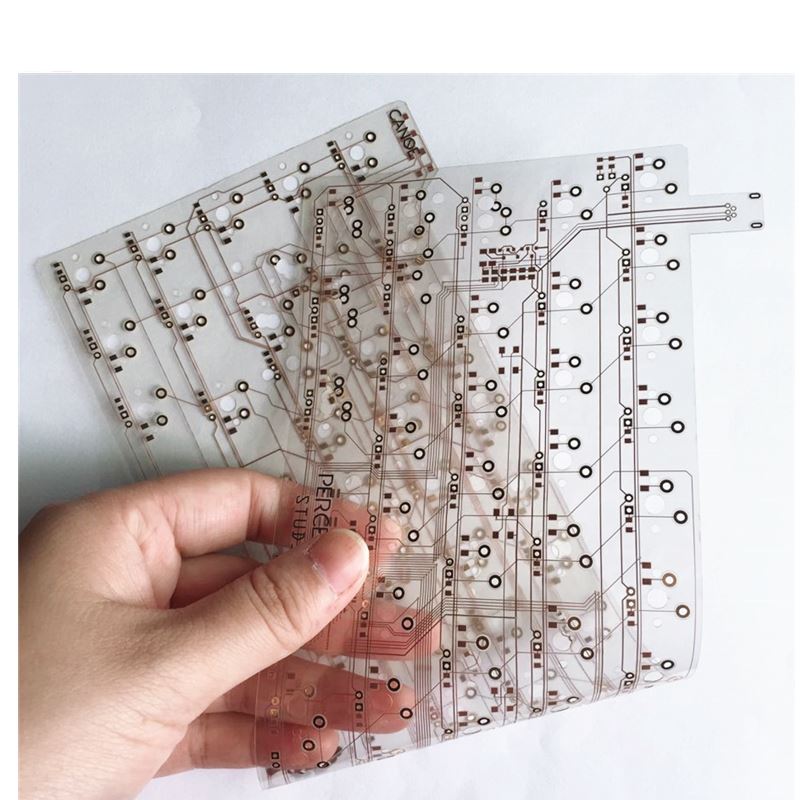

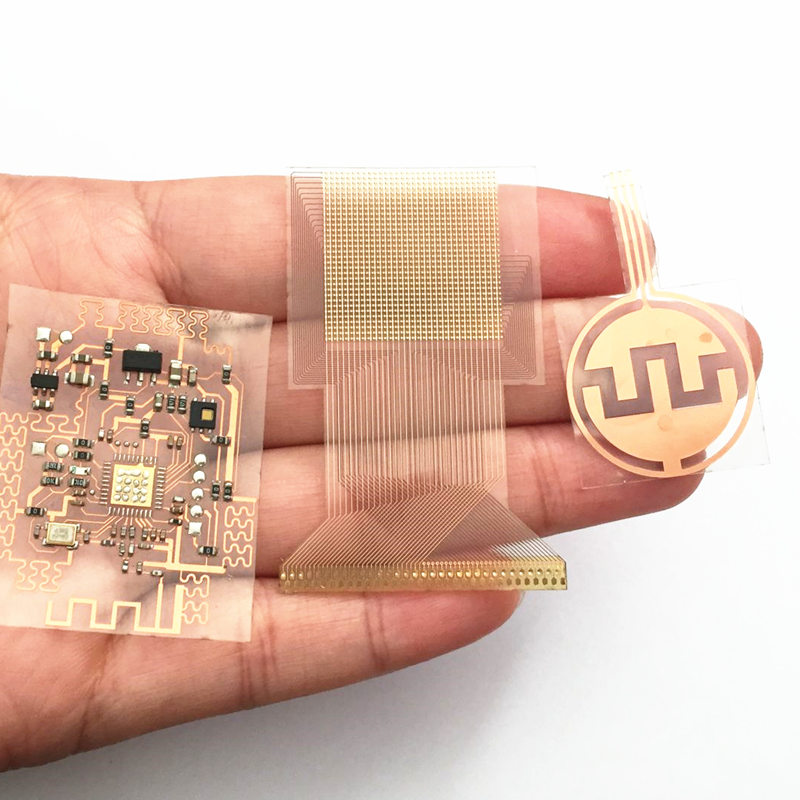

Transparent Flexible PCB

    • Adopting PEN as an insulation material, thus making low-temperature reflow soldering possible.
    • A transparent FPC with excellent permeability.
    • Forming fine wiring thus making designing to hide wiring possible.

Benefits

  • Supports diverse wiring requirements in flexible devices

Features

  • Offers transparency while retaining high heat resistance
  • Features a special transparent polyimide film with the non-adhesive copper-clad laminate developed jointly with Asahi Denka Kenkyusho Co.,Ltd. and DKN Research LCC as the base material to offer excellent transparency and heat resistance

Use

  • This product can be used in flexible devices, as well as wearable devices with high design requirements and devices used in the medical and other fields.

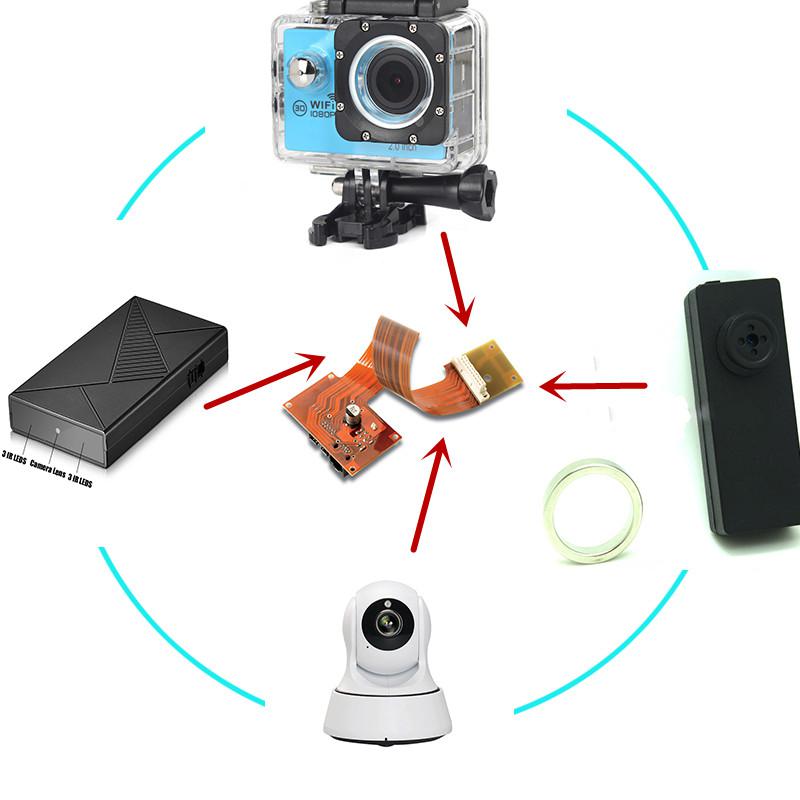

Application

  • Flexible devices such as flexible displays and touch panels, as well as electronic instruments that reflow semiconductor devices such as LED.

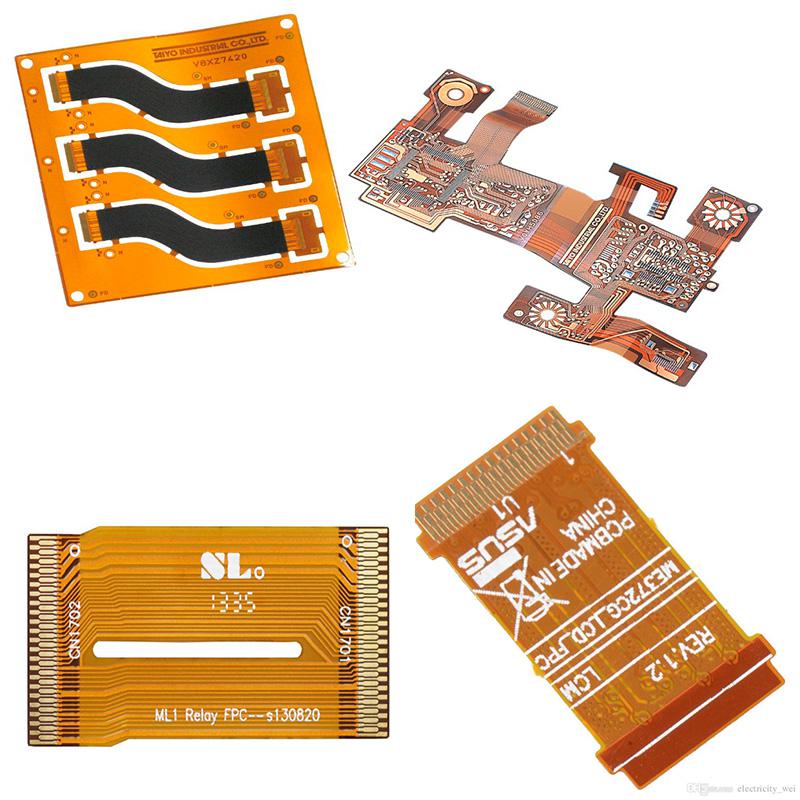

FPC Capability

Item
FPC Capability
Product types
Single layer, double layer,multi-layer, hollow FPC, separated-layer FPC, flex-rigid
Layer
1-14 layer flex pcb, 2-14 layer flex-rigid pcb
Maximum finished board size
250*5000mm
Board thickness
FPC,0.06-0.4mm; Flex-rigid PCB, 0.25-6.0mm
Min. trace width & spacing
0.045/0.045MM
Base material
PI, PET, Electrolytic Copper, Rolled Copper
Tolerance for finished product
±0.03mm
Copper thickness
12UM, 18UM, 36UM, 70UM
PTH Hole Dia.Tolerance(plated-through-hole)
±0.05mm
Stiffener
FR4/PI/PET/SUS/PSA
Impedance Control of Finished Product
50Ω – 120Ω
Acceptance criteria
Factory production standard, GB；IPC-650, IPC-6012, IPC-6013 II, IPC-6013 III, etc
