What is the Rigid-Flex PCB
The Rigid-Flex PCB is a flexible printed circuit board and a rigid printed circuit board, which are combined by pressing processes and the like according to the relevant process requirements to form a printed circuit board having FPC characteristics and PCB characteristics.
Why choose GoJGo Rigid-Flex PCB
1. As a Rigid-Flex PCB supplier , GoJGo strict control rigid flex PCB board material. For the PCB material of rigid flex PCB manufacturers, many requirements need to be considered,The PCB material selected by GoJGo is suitable for sticking and good heat resistance to ensure that the rigid joint of the rigid-flexed joint is consistent and not deformed after being heated. For flex material, GoJGo chooses base material of smaller size and film, and GoJGo chooses Kapton, which is good flexibility, High-temperature resistance, High hygroscopicity, Good electrical and mechanical properties, Good tear resistance. Good weather resistance and chemical properties, Good flame retardancy. About the Polyester Imide (PI), GoJGo chooses DuPont, which is made in America.
2. The Rigid-Flex PCB is a combination of FPC and PCB, the production of Rigid-Flex PCB should have both FPC production equipment and PCB production equipment, so the requirements for equipment are higher. GoJGo’s current equipment is at an advanced level.

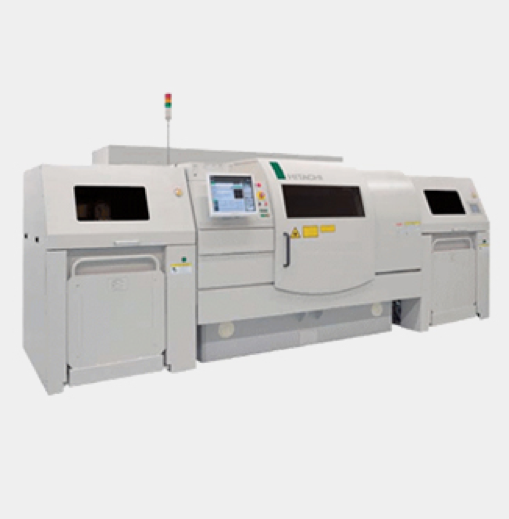

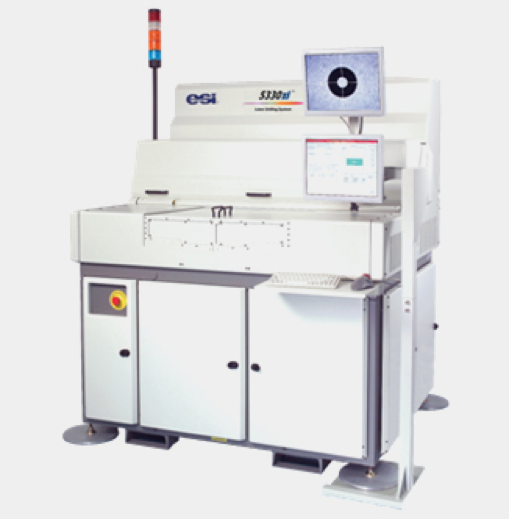

A. About Drilling equipment, GoJGo chooses ESI UV Laser drilling machine and Hitachi CO2 Laser drilling machine.

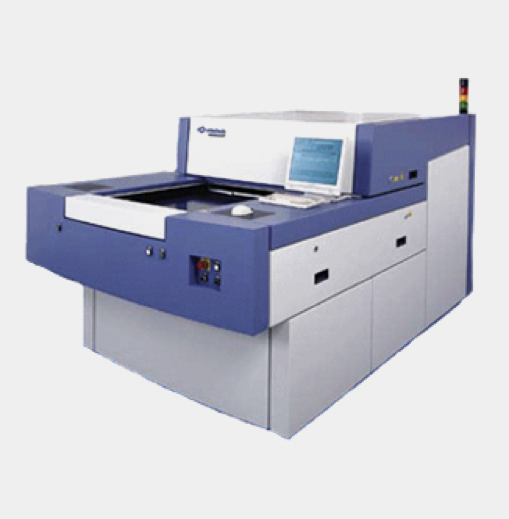

B. About printing equipment, GoJGo chooses laser imaging machine and automatic exposure machine.

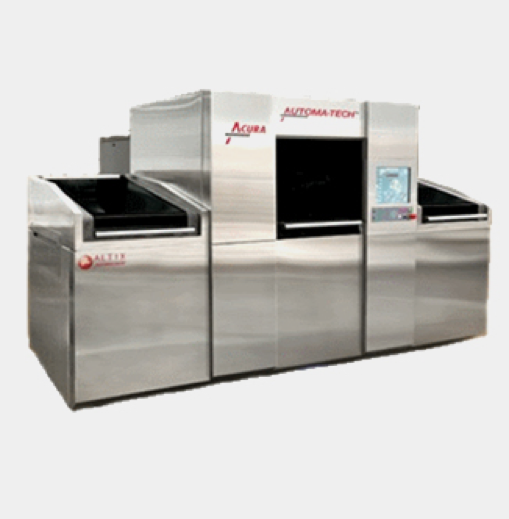

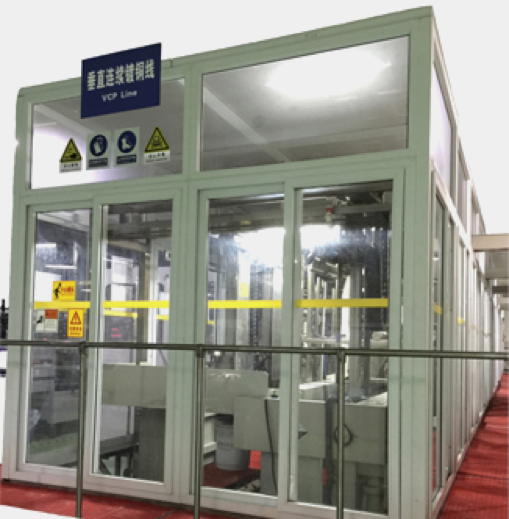

C. About automation equipment, GoJGo chooses VCP Plating line, Automatic reinforcing laminating
machine and Automatic laminating machine.
2. Good equipment has achieved a strong production capacity, GoJGo in the rigid flex PCB design
rigid flex PCB assembly and rigid-flex PCB fabrication production is a leading level, you can refer to
the following capabilities:
| Layer count | 1-10 | |
|---|---|---|
| Final board thickness | 0.05-0.6mm | |
| Aspect Ratio | 3:1 | |
| Copper thickness | 1/3~3oz | |
| Impedance Control | Single Ended Differential | +/- 10% +/- 10% |
| Line/Space | Inner Layer External Layer | 1.6/1.6mil 1.6/1.6mil |
| Min Drill Bit size | 6mil | |
| Hole size tolerance | PTH NPTH | +/-2mil +/-1mil |
| Hole Position Tolerance | +/-2mil | |
| Cover layer | Line to PAD Registration | 6mil +/-2mil |
| Profile Tolerance | Punching Laser Cutting | +/-3mil +/-2mil |
| Surface Finish | ENIG OSP Immersion Tin Immersion Silver Hard Gold Plating | Au 1-5u”, Ni 80-200u” 0.8-1.2um 0.15-0.45um Au 1-50u”, Ni 80-200u” |
3. In terms of quality, GoJGo uses high-end equipment to produce, thereby reducing human
intervention and further providing quality. Perfect quality system, good quality
4. In terms of delivery time, due to the complicated process of Rigid-Flex PCB combination, there are
many processes. If there is any problem in one process, the delivery period is a big problem. GoJGo
implements a special project follow-up in this aspect to ensure that the PCB is delivered in the
shortest time.
How to cooperate with you
1. You can go to our rigid flex PCB quote system to quote and order the rigid-flex PCB prototype or
quantity PCBs online, also can send email to us (tedchen163@yahoo.com). We will provide you with a
solution to make your rigid flex PCB cost lower.
2. GoJGo receive your order,review the first,if there are questions,we will communicate with you
the first time and answer you about the lead time.
3. Our Engineering department will review this order with relevant departments,Produced in the best
process and in the shortest time.
4. Before shipment,we will talk with you about the shipping time and shipping method.
If you would like to customize your PCB type and place an order online, please click below to request a quotation.
