Printed Circuit Board Fabrication
PCB prototyping used to the nightmares of many electronics professionals. GoJGo.com now terminates the nightmares!
GoJGo supply the fast prototyping service:
2 layers(Double sided PCB): 24 hours for urgent order(charge extra), 2-3 days usually.
4 layers: 48 hours for urgent order(charge extra), 4-5 days usually.
The gerber files uploading online will be inspected and checked that the files complies with our technical spec .Once the files pass audit,you can pay the cost online.And our engineer will check again and optimize the files to make production.
Prototyping stage is the most critical period of time for engineers, students and hobbyists. GoJGo.com not only makes your boards quick, but also makes your job right as well as cost-effective. This greatly reduces your cost and shorten the time for developing your electronic products.
The economical solution for circuit board prototypes with 1, 2, 4, 6, 8 or 10 layers, and a small overall area. Our PCB Calculator always shows the best price and production time.
Use our industry-leading online quotation software to try the automatic pricing experience. You can get your prices instantly after your inputting a few parameters. Try now!
PCB specifications:
· Brand Name: GoJGo
· Model Number:PCB Manufacturing
· Min. Line Width:0.1mm/4mil
· Min. Hole Size:0.2mm+-0.08mm
· Min. Line Spacing:0.153mm/6mil
· Copper Thickness:1oz, 2oz,3oz,4oz,5oz,10oz

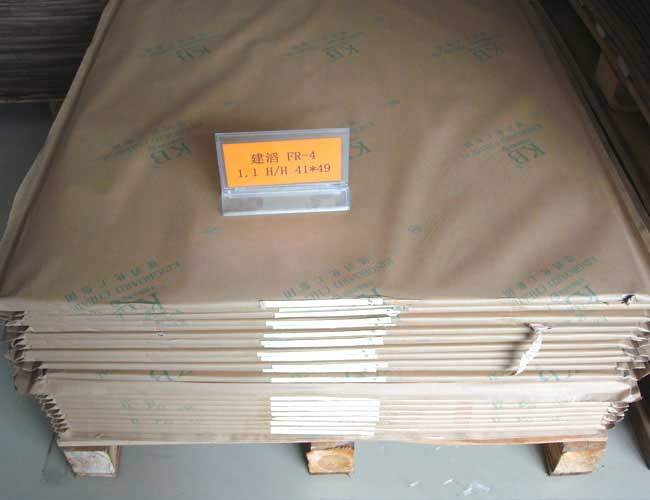

· Base Material: High-Temp.Aluminum,FR4, Flex,Flex-rigid, HDI, Rogers, etc.
· Board Thickness:0.2,0.4,0.6,0.8,1.0,1.2,1.6,2.0,2.4 mm
· Surface Finishing:HASL with lead, HASL lead free, Immersion gold, OSP, Hard Gold
· is_customized:Yes
· Solder Mask:Green, Red, Yellow, Blue, White, Black, Purple, Matte black, Matte green
· Silkscreen:White, Black
· Testing:Fly Probe Testing (Free) and A.O.I. testing(free),

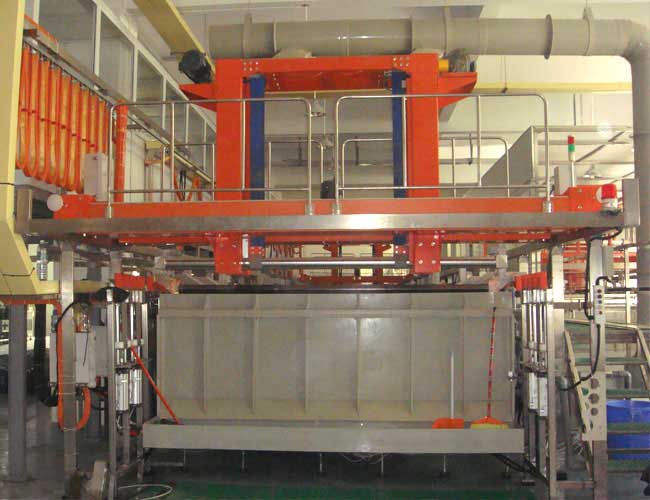

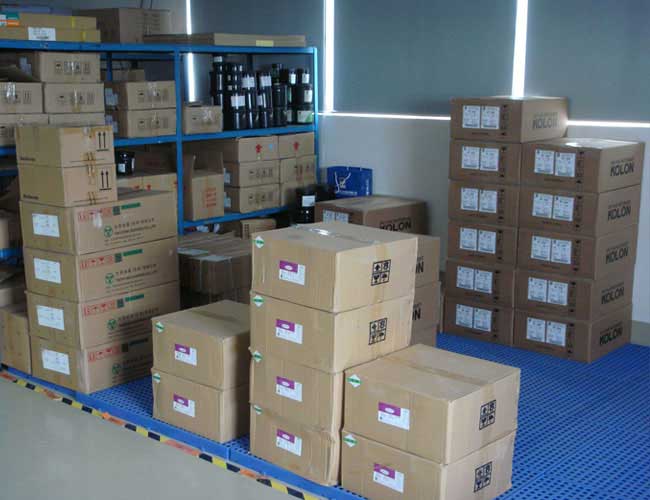

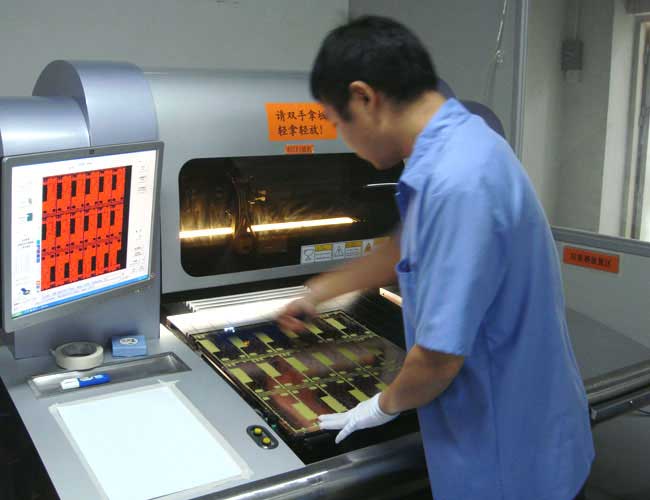

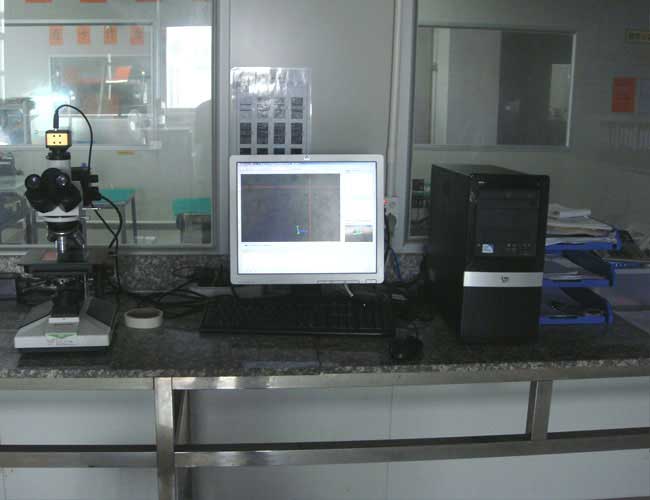

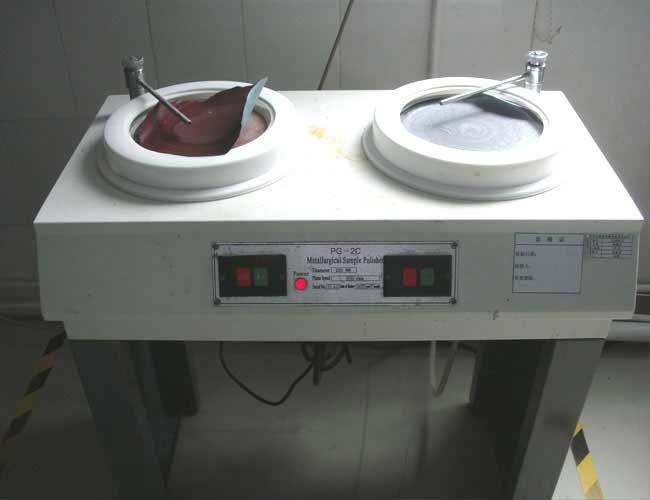

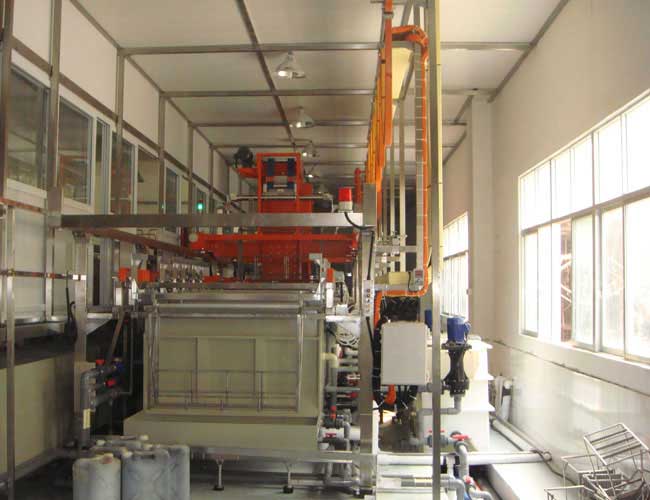

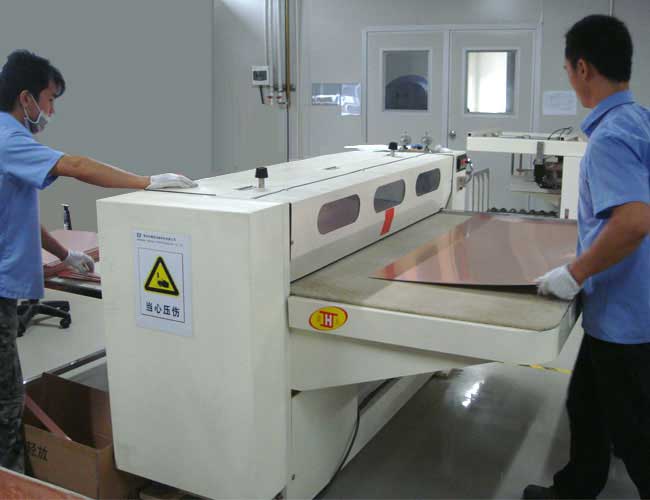

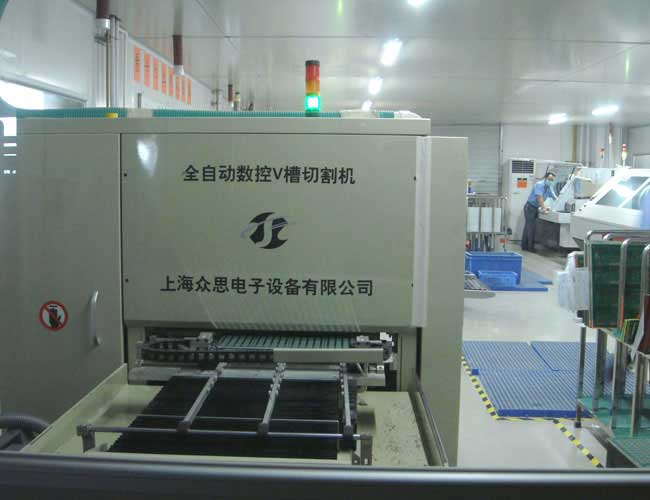

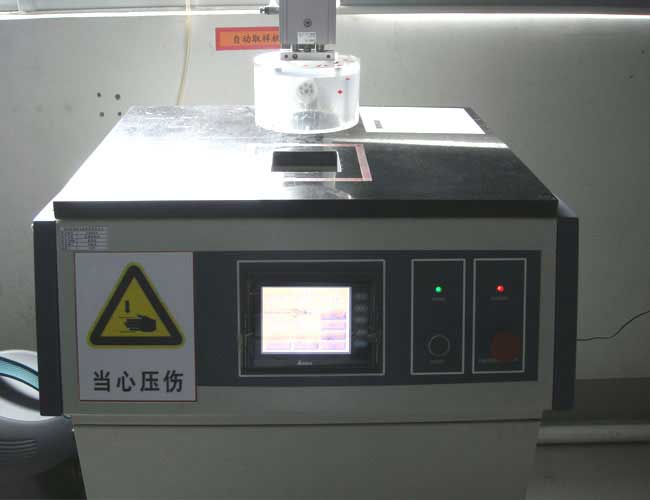

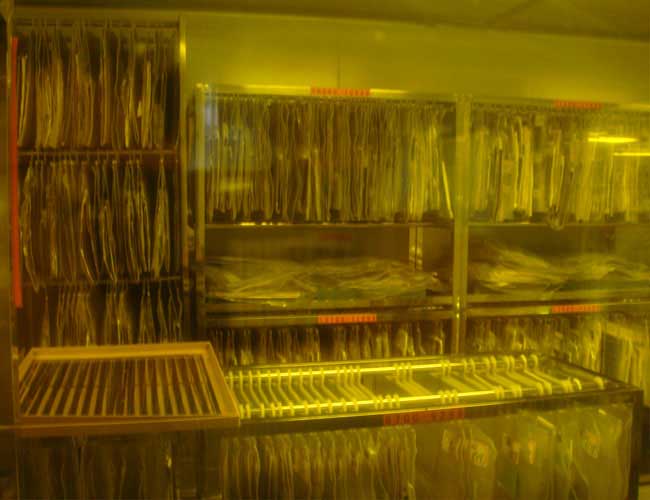

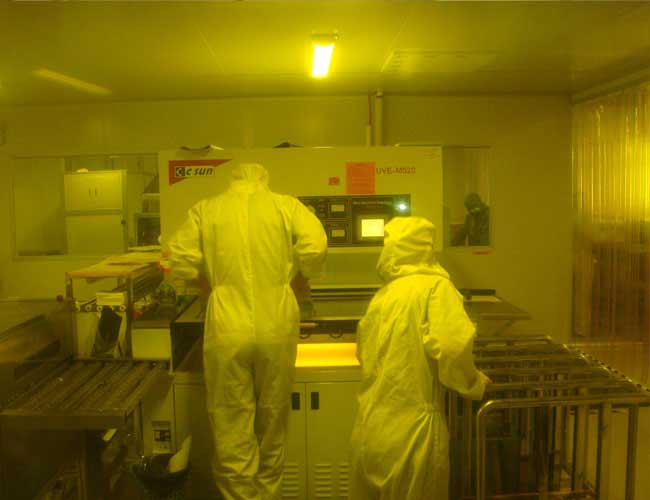

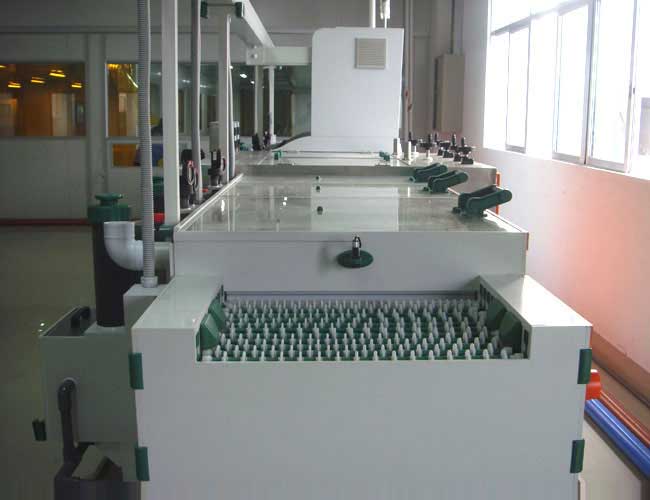

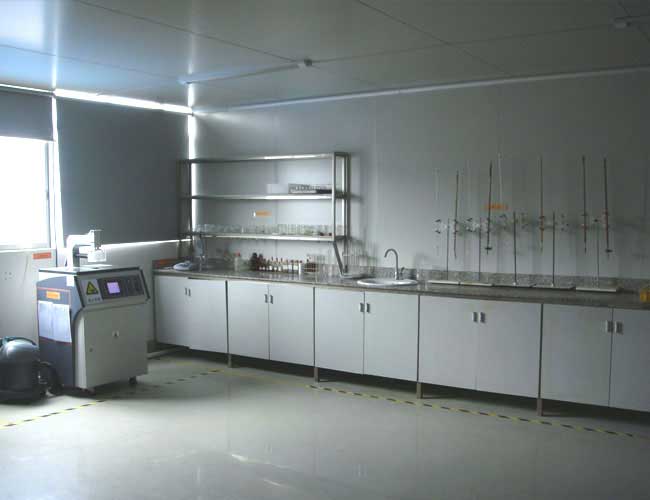

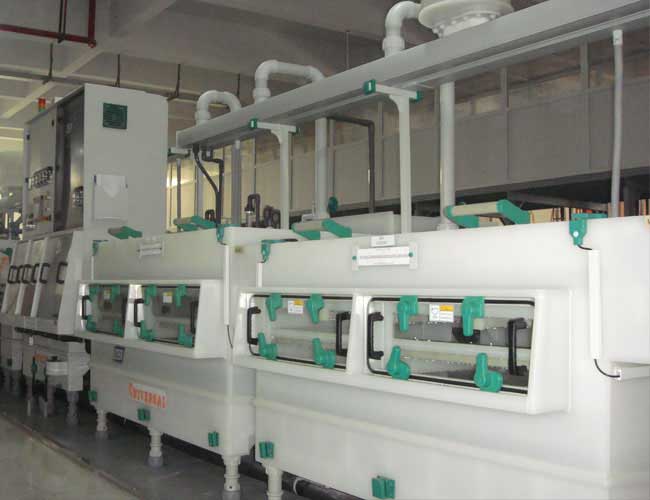

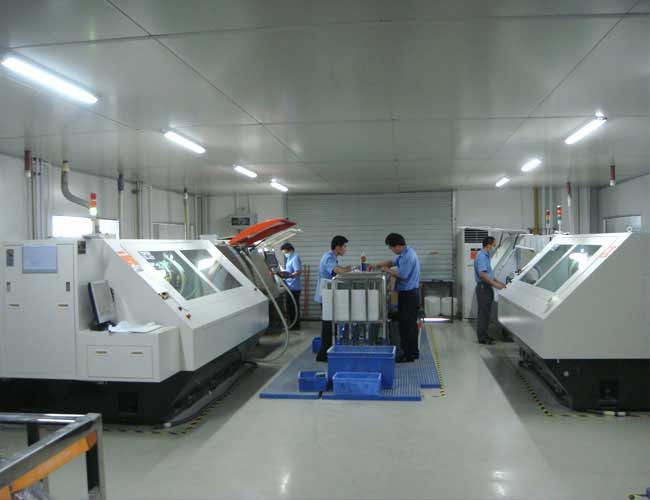

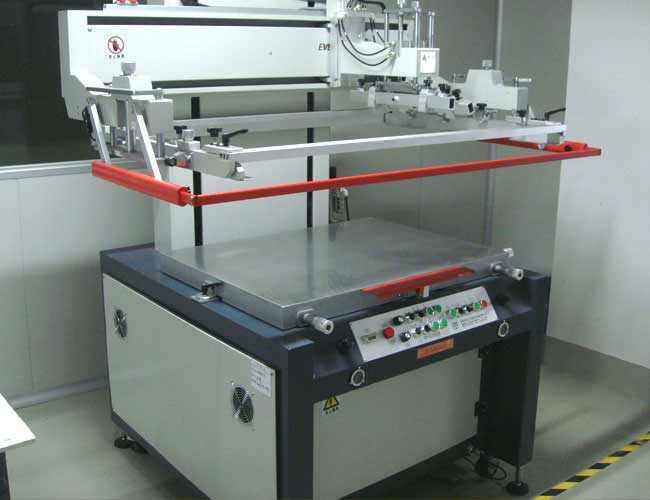

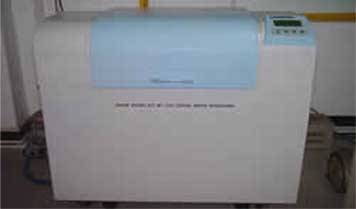

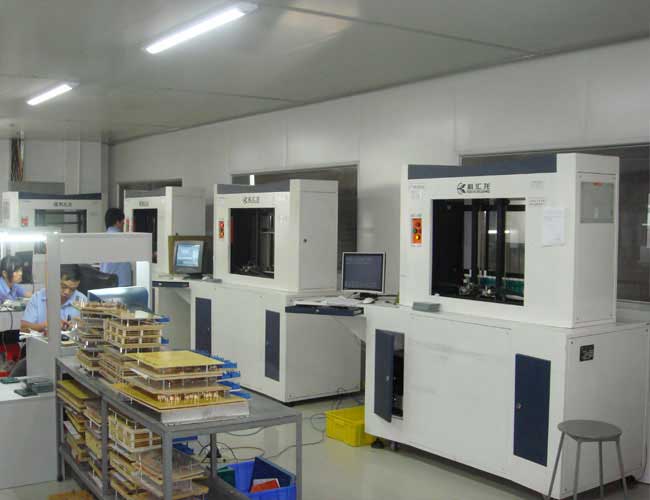

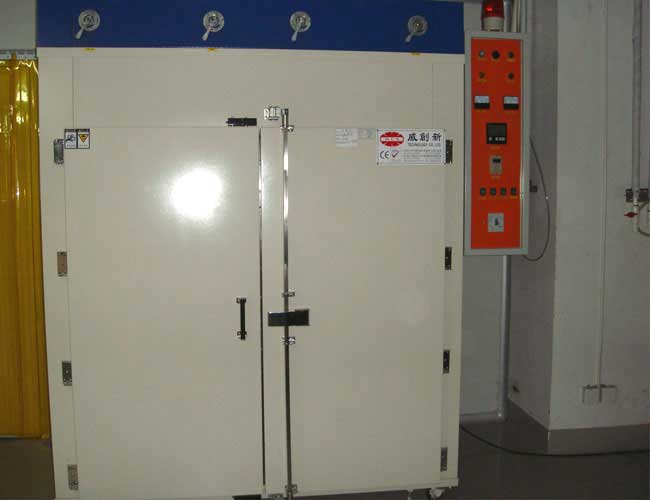

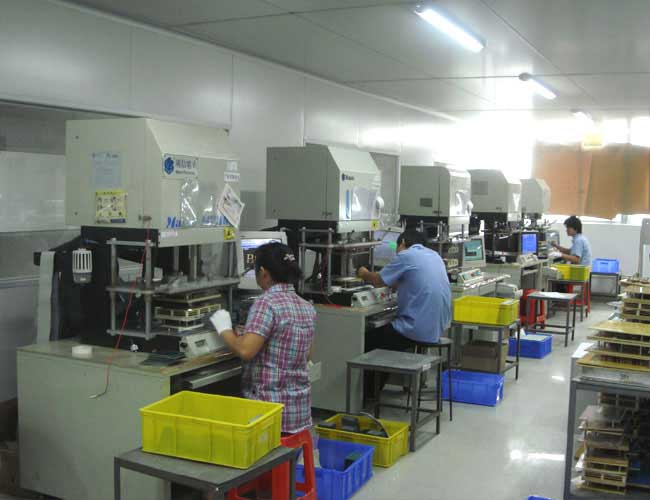

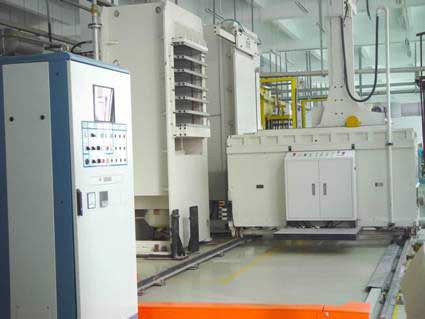

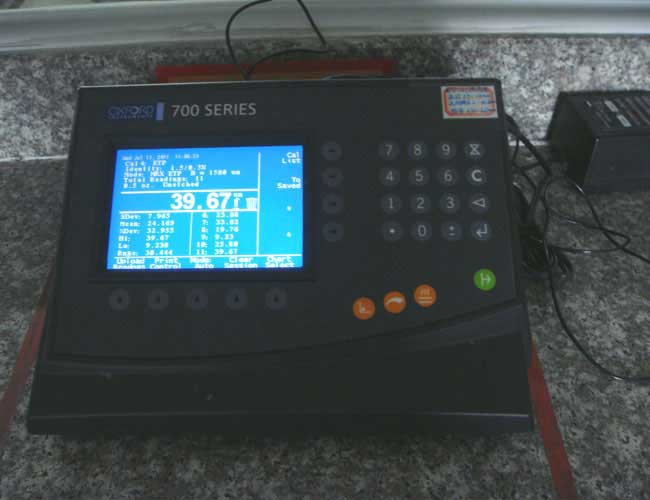

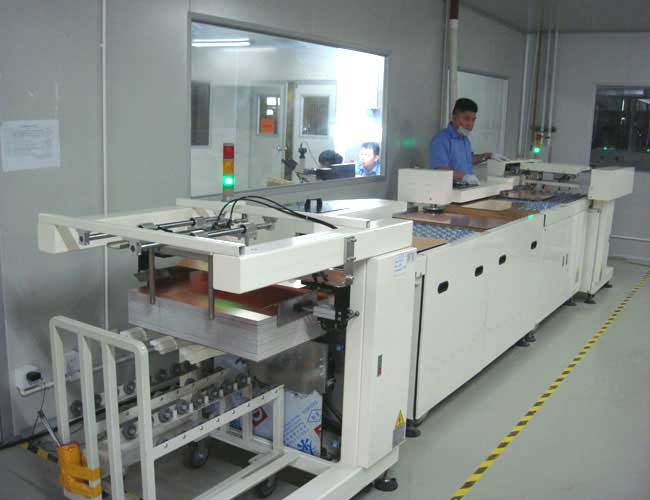

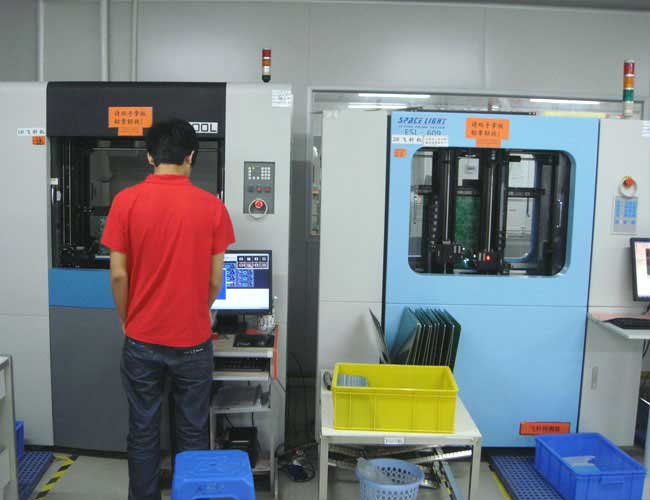

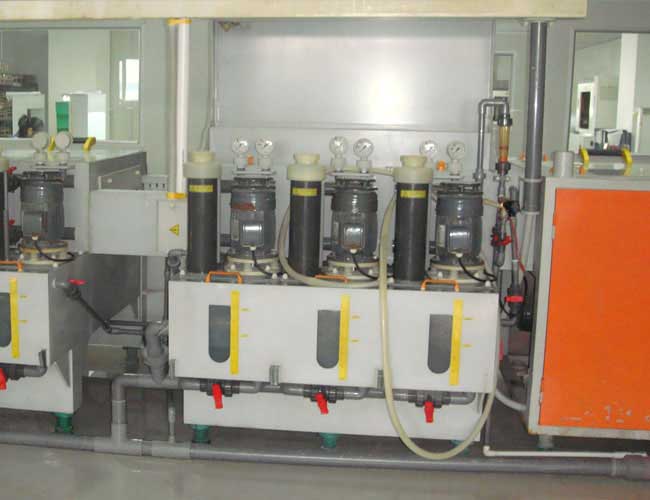

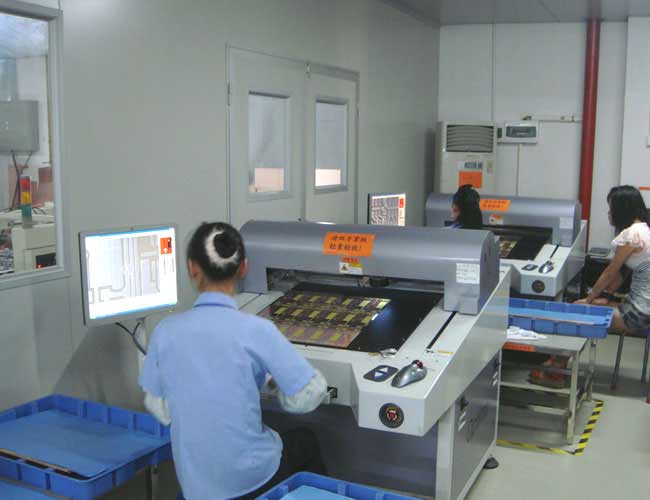

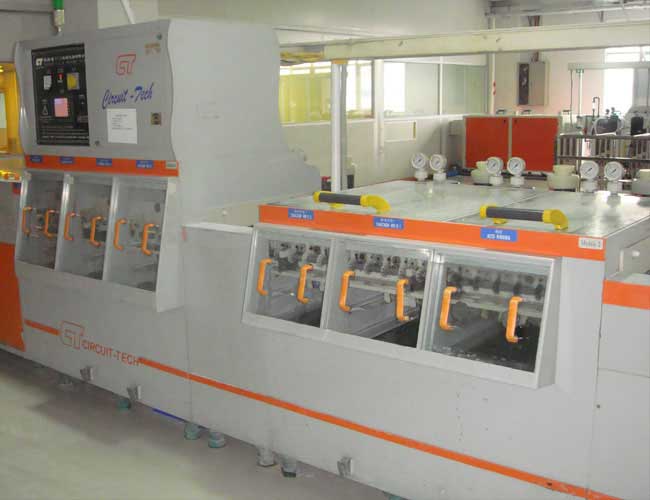

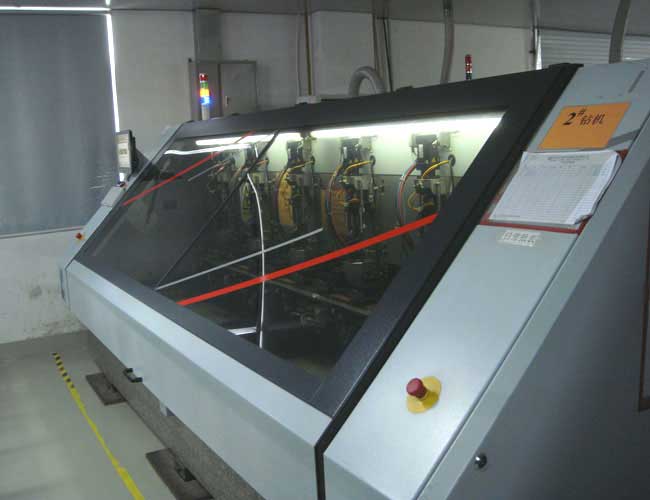

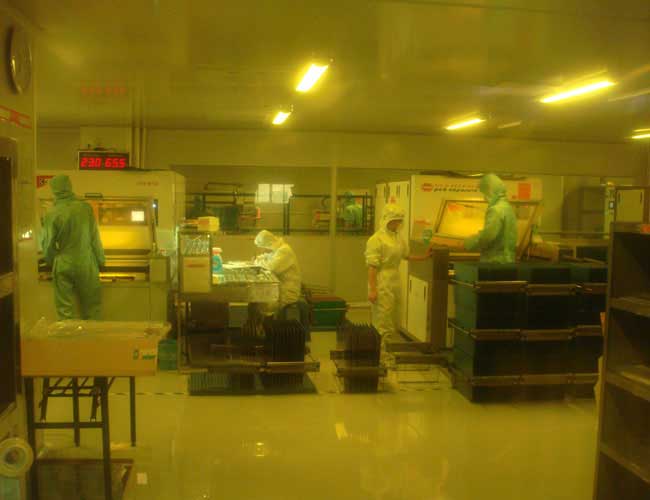

Factory produce equipment

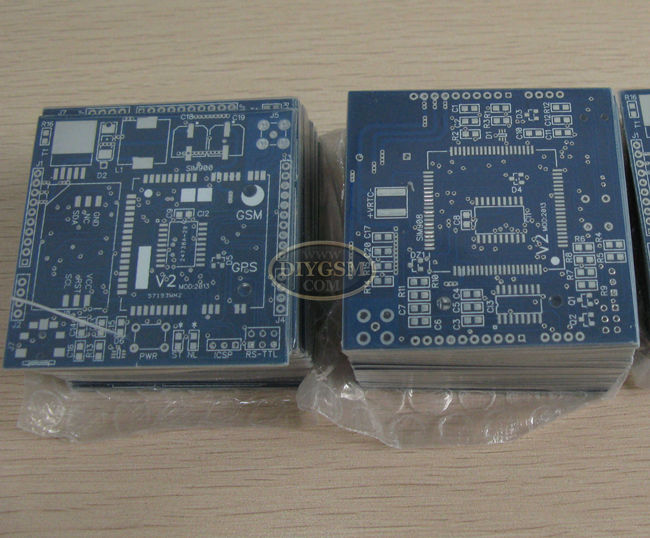

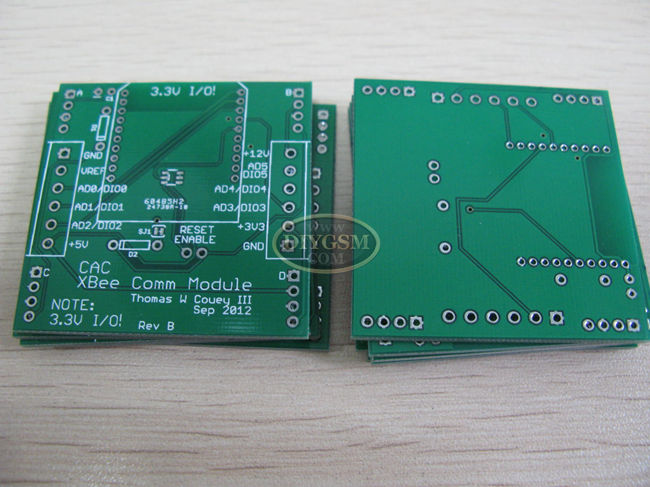

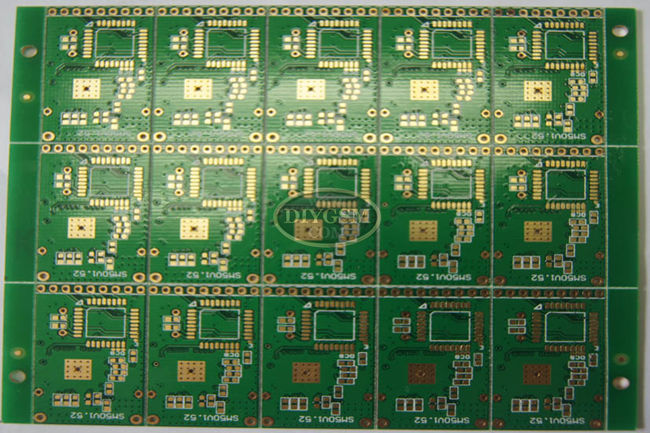

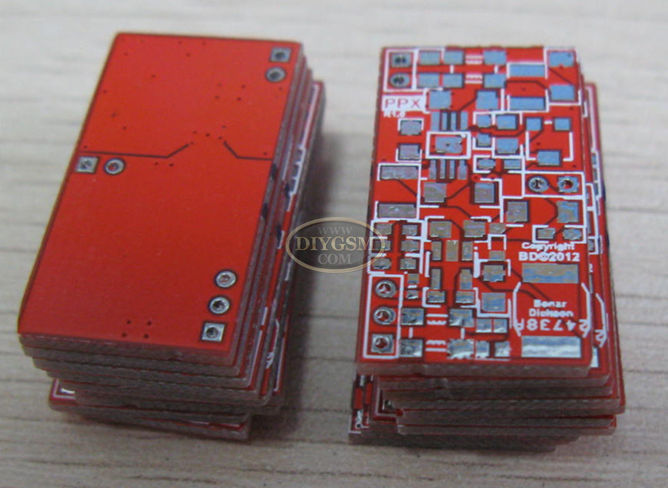

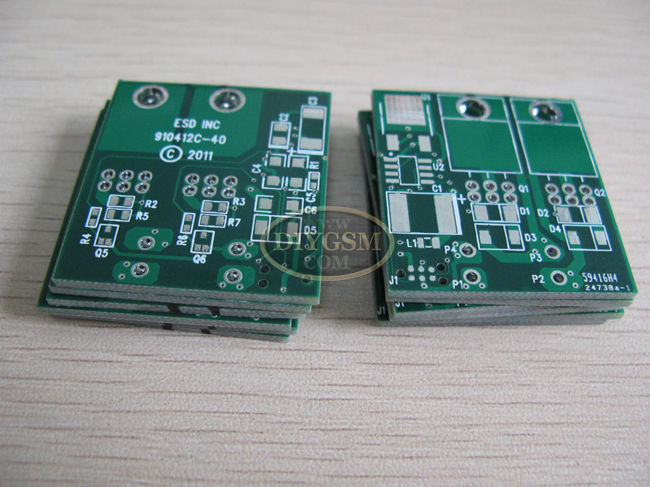

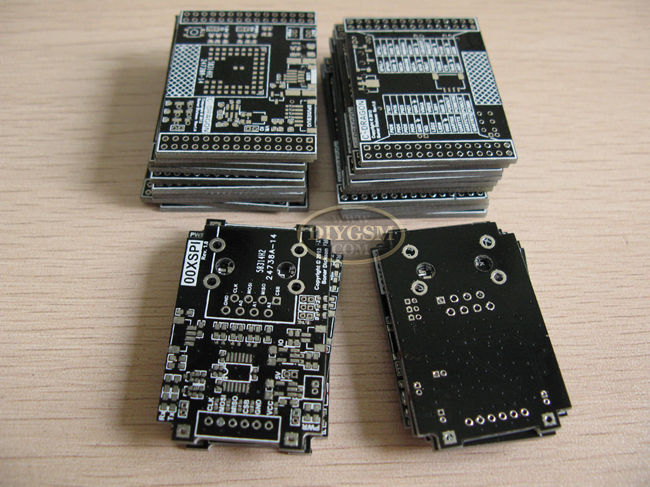

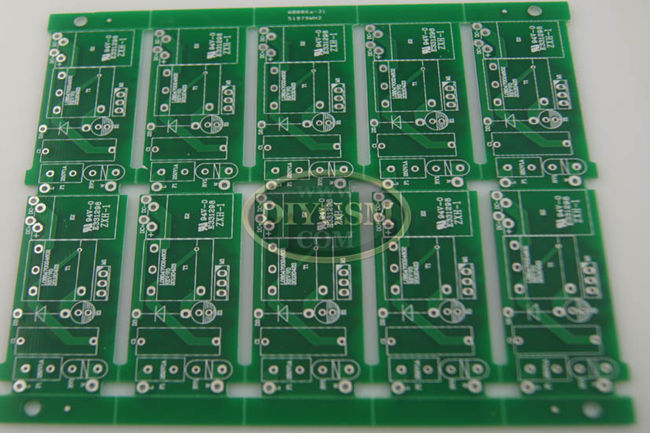

PCB Gallery
Half-cut/Castellated Holes
Edge Plating
Impedance control
Buried/blind vias
Custom Stackup
Carbon Mask
Via in pad
Via filled with resin
Countersinks/Counterbores
Z-axis milling
Turn time :As fast as 24 hours
The lead time will take 2 – 3 days usually.
If not urgent ,HongKong Post Air Mail,EMS,Epacket,Other shipping way are economic with 12-30 days.
If in urgent , Please inform us to use DHL,UPS,Fedex or TNT,according to package weight
We have been providing PCB Manufacture since 2003 in China. We believe our team will provide high quality and low cost service for you.
To make PCB, GoJGo has the experience and clients are satisfied with our products. Please contact us for more information about PCB prototype.

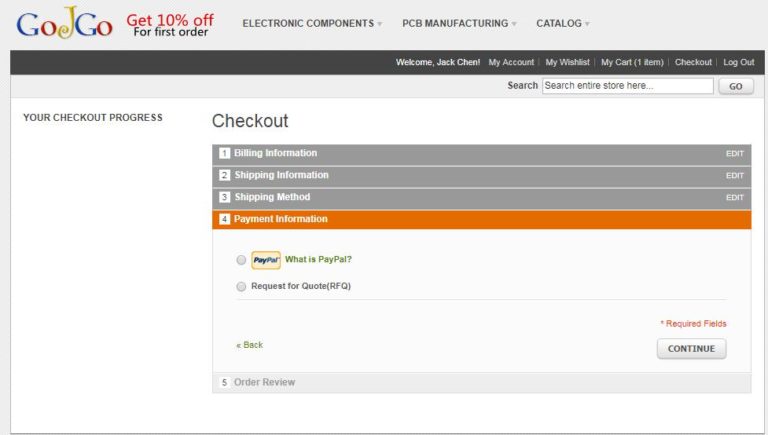

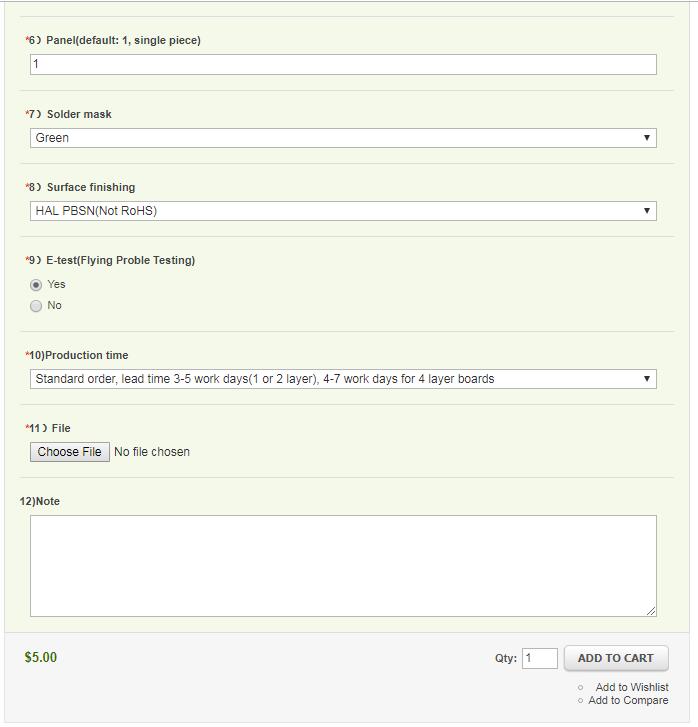

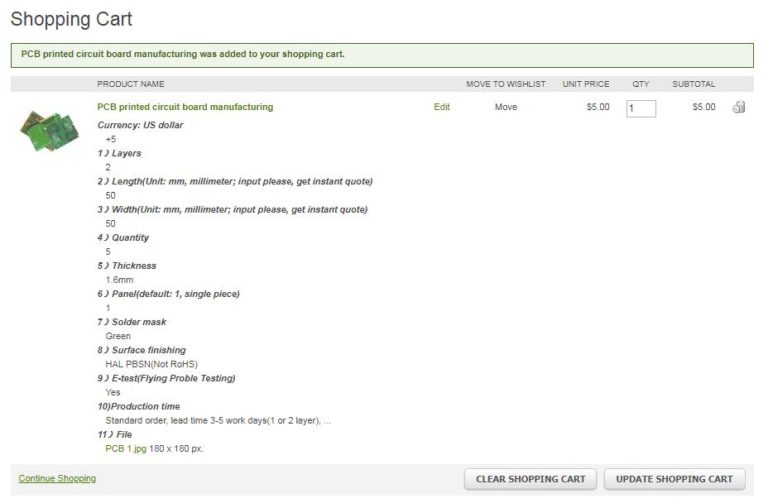

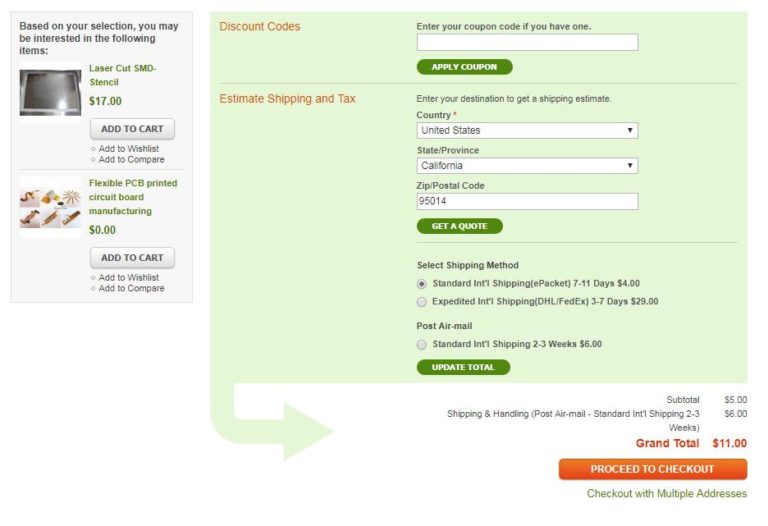

You can also calculate PCB price, place order and manage your order by click the button below.
