PCB Drill Hole, PTH, NPTH
Laser drill and mechanical drill hole contrast:
| Hole Φ≦ 0.2 mm | Hole Φ≦ 0.2~0.3 mm | Hole Φ≧ 0.3~6.3 mm | Hole Φ≧ 6.3 mm |
| Laser process | Sample board (mechanical or laser) | Normal process (mechanical) | Milling process (mechanical) |
| Sample board prototype High efficiency High Cost | Sample board prototype Low efficiency for mechanical way | Applied to most products: prototype PCB Mass production High efficiency High Quality Low cost | Sample prototype Mass production |
GoJGo’s reliable equipment and redundant manufacturing capability, Can adequately protect product quality and service efficiency.

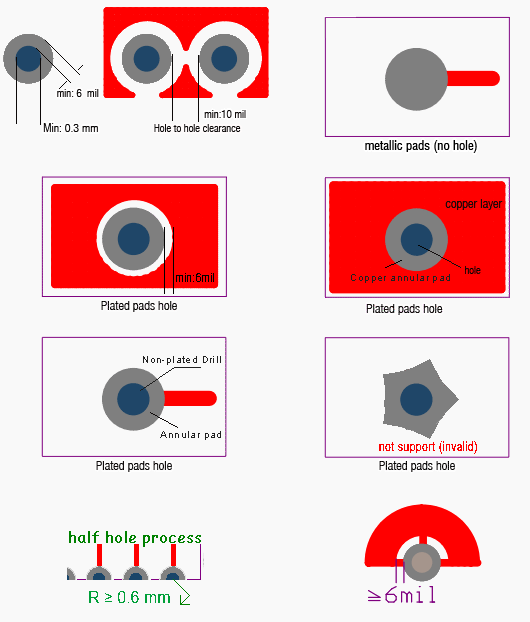

Non-metallic through hole (NPTH),Plated through hole (PTH),Plated pads hole
For stamp hole(“mouse bite”) examples, We recommend using via hole make stamp hole of multi-pcb panel.
If necessary, please use the V-cut proess alternative stamp hole. This reduces the risk of break in shipping.

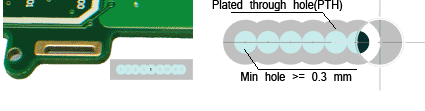

Slot plated through hole
