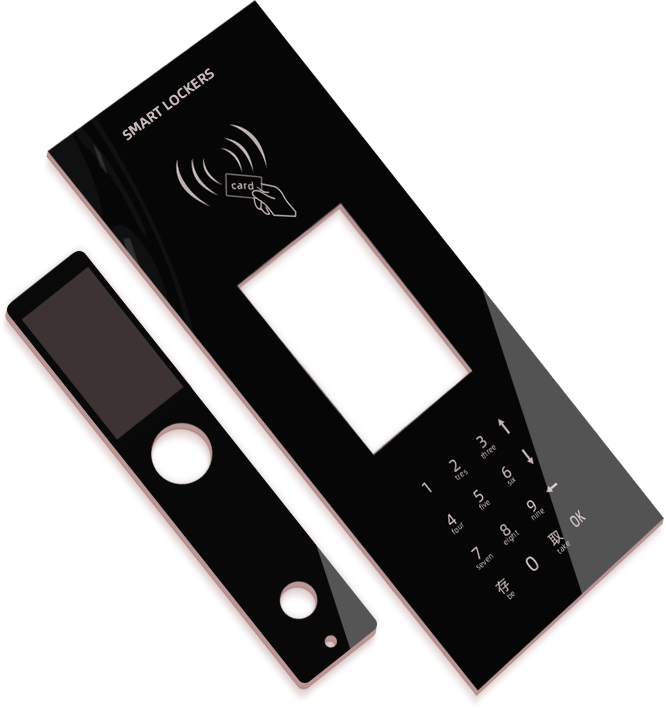

This is a combination of decoration (text/marking/logo) and functionality (Waterproof/dustproof) integrated display panel for electronic equipment.
Acrylic panel, it is used the silkscreen process to print the colors, pattern, company logo, product model, instructions and other information to the acrylic panel, and then performing drilling, shape cutting and other operations which need meet the design requirements of customer drawings. Acrylic panel, it is used the silkscreen process to print the colors, pattern, company logo, product model, instructions and other information to the acrylic panel, and then performing drilling, shape cutting and other operations which need meet the design requirements of customer drawings.

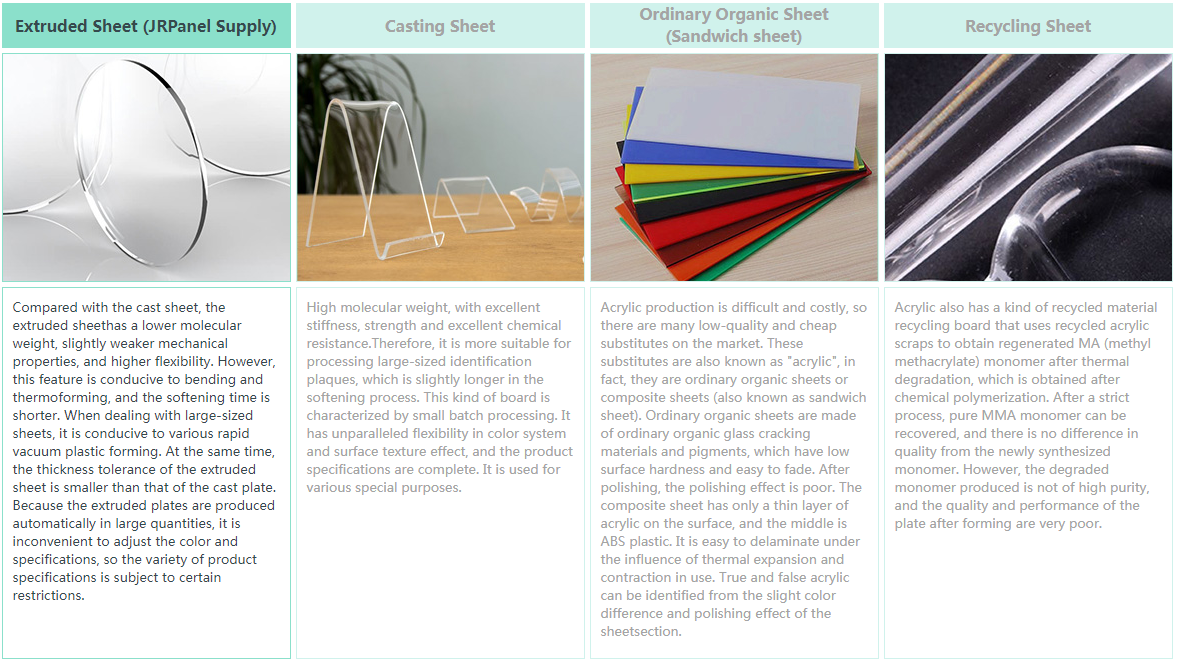

Acrylic material classification is mainly divided into three categories in China: one is imported board; the other is Taiwan-funded board; the third is domestic board. The difference lies in the origin and (MMA) purity of the raw materials used. This is also the key to determine the quality and price of the plate.
Taiwan-funded board refers to a board made of British Lucite (MMA) pure raw materials and Taiwan’s technology and process. Most of the molds used to produce sheet metal are made in the UK and Germany. The acrylic plate produced has uniform color, no water marks, and small thickness error; Its price fluctuates with the rise and fall of oil; There are also some new materials using MMA , The quality is also good.
Domestic plate refers to the raw materials used in the production of plates are domestic, and the other is generated by secondary processing of various acrylic plate recycled materials (PMMA). But the disadvantage is that the surface water mark is obvious, the thickness is uneven, it is easy to yellow, it is not suitable for plastic forming, only for carving. The advantage is the low price. Proved by experiments on the tablet. There is a certain gap between the effect of the spray and the import.

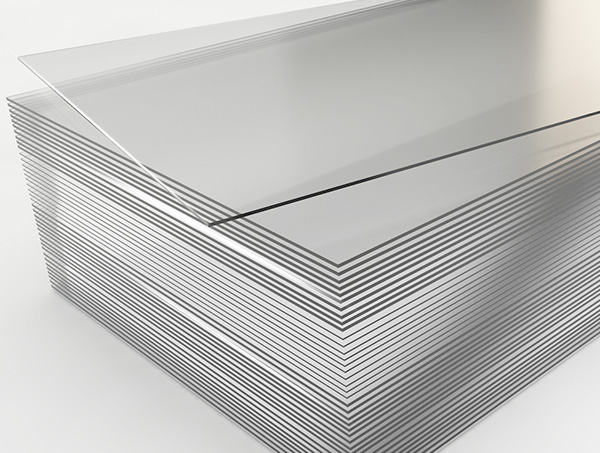

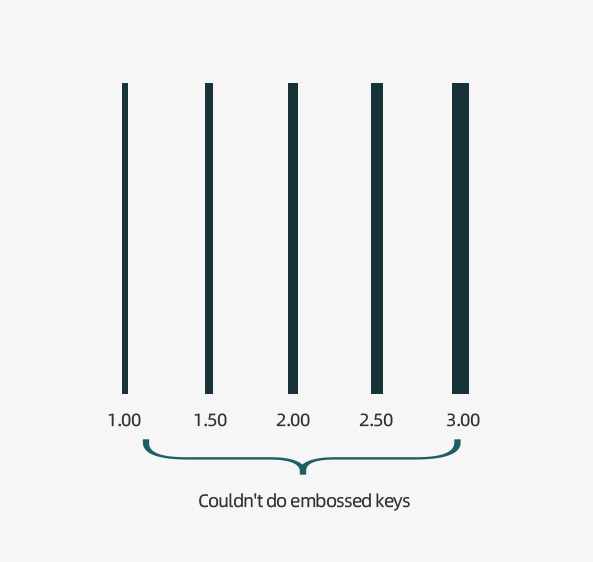

GoJGo can provide a variety of thickness acrylic sheet, as shown on the right picture.Because the acrylic sheet is not easy to bend, it cannot be processed such as embossed.

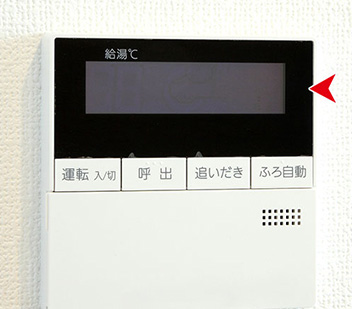

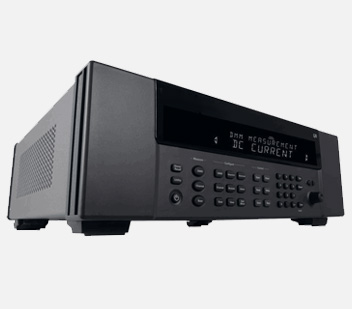

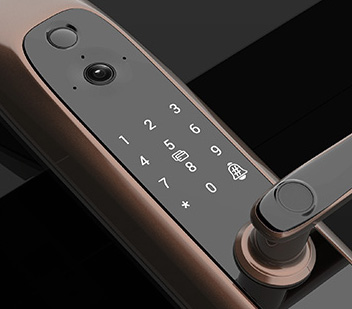

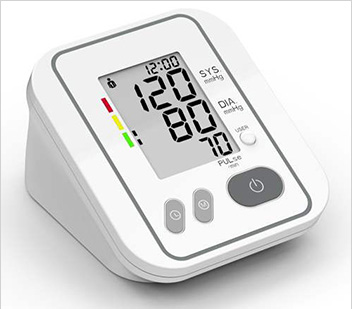

It is mostly used for the display front panel of the device.
Arcylic Grades from high to low is as following,
① Optical grade
② Silkscreen grade
③ Electroplating grade
④ Grade A
⑤ Grade B
Acrylic is as known as specially treated plexiglass, which is a new generation of plexiglass.It has the characteristics of good light transmission, pure color, rich color, beautiful and smooth, long service life, and does not affect the use. In addition, acrylic sheet and aluminum-plastic panel profiles, advanced screen printing, etc. So it can be perfectly combined to meet the needs of businesses. Acrylic blister is the best form of outdoor advertising to improve the level of business stores and unify the corporate image.ACRYLIC is a chemical material. The chemical name is “PMMA”, which is a polyacrylate, that is commonly known as “specially processed plexiglass”.
Acrylic raw materials in the application industry generally appear in the form of particles, plates, and pipes. Acrylic is a generic term for Acrylic and methacrylic chemicals, which Including monomers, plates, pellets, resins and composite materials. Acrylic plates are polymerized by methyl methacrylate monomer (MMA), namely polymethyl methacrylate (PMMA) plate plexiglass,”organic glass” Derived from the trade name “Oroglas” (a type of PMMA board), which is taken from “Organic Glass” (also known as organic glass).

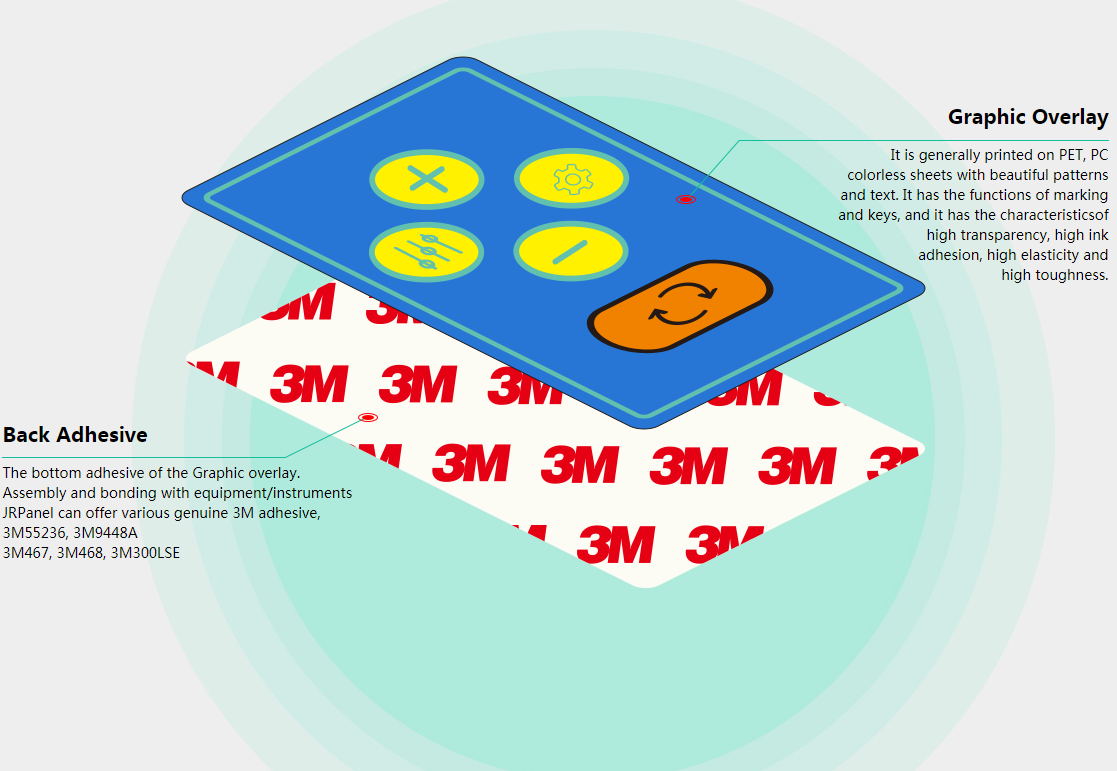

The Graphic overlay integrates functional text, marks, trademarks, transparent windows and display. The design of the Graphic overlay can reflect the integration of product functions and original color ideas, which is unique.Thin Graphic overlay are widely used in intelligent electronic measuring instruments, medical instruments, computer control, CNC machine tools, communication terminal equipment, various industrial and household appliances products (such as copiers, refrigerators, microwave ovens, electric fans, washing machines, electronic game machines, etc.) .
1. Check the color: The contrast of colors. Due to ambient light and other reasons,it can not be directly compared with the real sample or computer pictures. It needs to be checked with the Pantone color card. The general colors can only be closer, couldn’t be same. GoJGo uses Pantone Formula Guide Coated
card. [Finding color numbers on https://www.pantone.com/color-finder
2. Shape inspection: Check the shape and internal slots and windows accordingly according to the product design drawings.
3. Appearance inspection: check the graphics of the panel layer, the logo text, etc, whether there are defects, omissions, stains, etc. Whether the window and press position are offset. If there is protective film attached to the window.
4. Check the peel strength of the adhesive: check whether the adhesive is the adhesive selected according to the order, and test the peel strength of the adhesive is not less than 8N/25mm.
1. You can send email to us (tedchen163@yahoo.com). We will provide you with a
solution to make your production.
2. GoJGo receive your order,review the first,if there are questions,we will communicate with you
the first time and answer you about the lead time.
3. Our Engineering department will review this order with relevant departments,Produced in the best
process and in the shortest time.
4. Before shipment,we will talk with you about the shipping time and shipping method.
